DJI Dock 3

DJI Dock 3 — Matrice 4D Series bilan ishlaydigan, statsionar yoki avtomobilga o‘rnatiladigan 24/7 masofaviy operatsiyalar platformasi. Tez zaryad, mustahkam himoya va FlightHub 2 boshqaruvi bitta yechimda.

Bo'lim: Masofaviy operatsiyalar

DJI Dock • Matrice 4D uchun yangi avlod masofaviy stansiya

DJI Dock 3

IP56 himoya, keng harorat diapazoni, tez zaryad va O4 Enterprise asosida uzoq hududlarda doimiy avtomatik operatsiya.

Vazn

55 kg

Himoya

IP56

Ish harorati

−30 °C dan +50 °C gacha

Zaryad

15% dan 95% gacha taxminan 27 min

Shamolga chidamlilik

12 m/s gacha

O‘rnatish balandligi

4500 m gacha

Mahsulot haqida batafsil

Platforma va imkoniyatlar

DJI Dock stansiyasi dronni saqlaydi, sog‘ligini nazorat qiladi, zaryadlaydi va bulutdan yuborilgan missiyani avtomatik bajarishga tayyorlaydi. FlightHub 2 orqali operator bir necha obyektni markazdan kuzatishi mumkin.

Unumdorlik va natija sifati

Tizim samaradorligi dockning joylashuvi, elektr va internet barqarorligi, GNSS ko‘rinishi, ob-havo, zaryad sikli hamda missiya uzunligiga bog‘liq. O‘rnatishdan oldin radio va sayt survey o‘tkaziladi.

Xavfsizlik va ishonchlilik

Avtonom degani nazoratsiz degani emas. Geofence, balandlik, ob-havo limiti, emergency landing, odamlar va transport zonasi, texnik xizmat jadvali hamda mas’ul operator eskalatsiyasi oldindan sozlanadi.

Professional ish jarayoni

Sayt survey va poydevordan keyin elektr, tarmoq, RTK va ob-havo sensori tekshiriladi. FlightHub 2 da missiya hamda triggerlar yaratiladi; sinov parvozi, qabul testi va navbatchilik reglamentidan so‘ng tizim ishga tushiriladi.

Texnik xususiyatlar

Vazn	55 kg
Himoya	IP56
Ish harorati	−30 °C dan +50 °C gacha
Zaryad	15% dan 95% gacha taxminan 27 min
Shamolga chidamlilik	12 m/s gacha
O‘rnatish balandligi	4500 m gacha
Dron	Matrice 4D / 4TD
Parvoz	54 min gacha; 10 km operatsion radius
Aloqa	DJI O4 Enterprise
Dastur	FlightHub 2 va Cloud API

Qaysi ishlar uchun mos?

Uzoq yo‘l va temiryo‘l inspeksiyasi
Elektr va energetika infratuzilmasi
Chekka hududdagi favqulodda monitoring
24/7 avtomatik patrul va xaritalash

Tavsiya etilgan operatsion jarayon

1.Vazifa va kutilgan natijani aniq belgilang
2.Uchish hududi, ob-havo, aloqa va xavf omillarini tekshiring
3.Mos payload/modul, batareya va missiya parametrlarini tanlang
4.Qisqa sinov va pre-flight checklistdan keyin asosiy topshiriqni bajaring
5.Fayl, telemetriya va natija sifatini tekshirib, hisobotni arxivlang

Komplekt tarkibi: “Komplektatsiya” tabida rasmlar bilan ko‘rsatilgan.

Mos jihozlar va ekotizim

Elektr himoyasi va UPS/inverter yechimi
Barqaror internet va zaxira kanal
RTK/NTRIP ulanishi
Kuzatuv va perimetr xavfsizligi
Cloud API integratsiyasi
Davriy servis va masofaviy monitoring

Joriy etish va texnik xizmat

Uskuna qabul qilinganda firmware, seriya raqami, batareya holati, sensor va mexanik qismlar tekshiriladi. Har bir ish kuni oldidan pre-flight checklist, ish tugagach esa tozalash, fayl zaxirasi va nosozlik qaydi bajariladi.

Professional tizim uchun operator tayyorlash, ehtiyot qismlar, mavsumiy servis, batareya saqlash rejimi va favqulodda reja ekspluatatsiya paketining bir qismi sifatida ko‘rilishi kerak.

Xarid oldidan muhim eslatmalar

Ko‘rsatilgan parvoz, masofa, qamrov, oqim va aniqlik qiymatlari ishlab chiqaruvchi sinov sharoitidagi maksimal yoki tipik natijalardir. Real ko‘rsatkich konfiguratsiya, ob-havo, balandlik, material, payload, radio xalaqit va dastur versiyasiga bog‘liq.

O‘zbekiston va uchiriladigan hududning amaldagi aviatsiya, ro‘yxatdan o‘tkazish, radio, maxfiylik, kimyoviy vosita va mehnat xavfsizligi talablarini ish boshlashdan oldin tekshiring.

DJI rasmiy mahsulot ma’lumotlari →

Dronxizmat tavsiyasi: komplektni faqat model nomi bo‘yicha emas, vazifa, natija formati, kunlik qamrov, operator soni, batareya sikli va servis rejasi bo‘yicha tanlang. Buyurtmadan oldin yakuniy konfiguratsiyani menejer bilan tasdiqlang.

Dok — umumiy

Mahsulot nomi	DJI Dock 3
Umumiy og‘irlik	55 kg (siz dron)
O‘lchamlari	Dock Cover Opened: 1760×745×485 mm (U×K×B) Dock Cover Closed: 640×745×770 mm (U×K×B)
Kirish kuchlanishi	100-240 V (AC), 50/60 Gs
Kirish quvvati	Maks. 800 Vt
Ishchi harorat	-30° dan 50° C gacha (-22° dan 122° F gacha)
Himoya darajasi (IP)	IP56
Joylashtiriladigan dronlar soni	1
Qo‘nishda ruxsat etilgan maks. shamol tezligi	12 m/s
Maks. ishchi balandlik	4500 m
RTK baza stansiyasi qabul chastotasi	Simultaneously receive: GPS: L1 C/A, L2, L5 BeiDou: B1l, B2l, B3l, B2a, B2b, B1C GLONASS: F1, F2 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5

Dok — quvvatlash ko‘rsatkichlari

Chiqish kuchlanishi	35 V DC
Quvvatlash vaqti	27 daqiqa

Dok — video uzatish

Ishchi chastota	2.400-2.4835 GGs 5.150-5.250 GGs (CE: 5.170-5.250 GGs) 5.725-5.850 GGs
Antenna	Built-ichida 9 antenna, 2T4R, qo‘llab-quvvatlaydi intelligent switching
Uzatgich quvvati (EIRP)	2.4 GGs: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.2 GGs (CE: 5.170-5.250 GGs): < 23 dBm (FCC/CE) 5.8 GGs: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)

Dok — iqlim tizimi

Ishchi kuchlanish	48 V DC
Iqlim tizimi turi	Compressor-based air conditioning

Dok — zaxira batareya

Batareya sig‘imi	12 Ah
Chiqish kuchlanishi	12 V
Batareya turi	Lead-acid batareya
Batareya ishlash muddati	> 4 soat

Dok — tarmoqqa ulanish

Ethernet ulanishi	10/100/1000Mbit/s adaptive Ethernet port
4G ulanish	Talab qilinadi DJI Cellular Dongle 2

Dok — sensor

Shamol tezligi sensori	Qo‘llab-quvvatlanadi
Yog‘in sensori	Qo‘llab-quvvatlanadi
Atrof-muhit harorati sensori	Qo‘llab-quvvatlanadi
Suv bosishi sensori	Qo‘llab-quvvatlanadi
Ichki harorat sensori	Qo‘llab-quvvatlanadi
Ichki namlik sensori	Qo‘llab-quvvatlanadi

Dok — tashqi kuzatuv kamerasi

Ruxsat	1920×1080
Ko‘rish burchagi (FOV)	151°
Yordamchi yoritgich	Auxiliary White Light

Dok — ichki kuzatuv kamerasi

Ruxsat	1920×1080
Ko‘rish burchagi (FOV)	151°
Yordamchi yoritgich	Auxiliary White Light

Dok — chaqmoqdan himoya

AC quvvat porti	20 kA (rated value), meets EN 61643-11 Type 2 va IEC 61643-1 Class Ⅱ himoya level requirements
Ethernet porti	10 kA (I total )，meets EN/IEC 61643-21 Category C himoya level requirements

Dok — mos dasturiy ta’minot

Qo‘llanilishi	DJI Enterprise app (used with Android phones for deployment and commissioning)
Bulut platformasi	FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync DJI Cloud API

Dok — kengaytirish imkoniyati

Chekka hisoblash

Qo‘llab-quvvatlaydi tashqi kommutatorlar bilan ma’lumot almashinuvi

Dron — umumiy

Og‘irligi	1850 g
Maks. uchish og‘irligi	2090 g
O‘lchamlari	377.7×416.2×212.5 mm (U×K×B, propellerlarsiz)
G‘ildirak bazasi	Diagonal Wheelbase: 498.5 mm old Motor Chap-O‘ng Wheelbase: 383.0 mm Rear Motor Chap-O‘ng Wheelbase: 343.0 mm old-Rear Wheelbase: 341.6 mm
Maks. ko‘tarilish tezligi	6 m/s (Oddiy rejim) 10 m/s (Sport rejim)
Maks. pasayish tezligi	6 m/s (Oddiy rejim) 8 m/s (Sport rejim)
Maks. gorizontal tezlik (dengiz sathida, shamolsiz)	Oddiy rejim, Bilan Obstacle sezish Yoqilgan: 15 m/s parvoz forward, 12 m/s parvoz backward, 10 m/s parvoz sideways Sport rejimi: 21 m/s parvoz forward, 19 m/s parvoz backward, 15 m/s parvoz sideways
Maks. shamolga chidamlilik	During Operation: 12 m/s During Uchish/Landing: 12 m/s
Maks. uchish balandligi	6500 m
Maks. parvoz vaqti	54 daqiqa
Maks. osilib turish vaqti	47 daqiqa
Maks. ishchi radius	10 km
Maks. parvoz masofasi	43 km
Maks. qiyalik burchagi	25° (Oddiy rejim) 30° (Sport rejimi)
Maks. burchak tezligi	200°/s
Global navigatsiya sun’iy yo‘ldosh tizimi	GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
Osilib turish aniqligi (shamolsiz yoki yengil shamolda)	Vertikal: ±0.1 m (bilan ko‘rish pozitsiyalash) ±0.5 m (bilan GNSS pozitsiyalash) ±0.1 m (bilan RTK pozitsiyalash) Gorizontal: ±0.3 m (bilan ko‘rish pozitsiyalash) ±0.5 m (bilan GNSS pozitsiyalash) ±0.1 m (bilan RTK pozitsiyalash)
Ishchi harorat	-20° dan 50° C gacha (-4° dan 122° F gacha)
Himoya darajasi (IP)	IP55
Motor modeli	2611
Propeller modeli	1364F foldable past-noise anti-ice propellerlar
RTK moduli	Integrated on dron
Mayoq	Integrated on dron

Dron — kameralar

Tasvir sensori	DJI Matrice 4D: Wide-Angle kamera: 4/3 CMOS, samarali piksellar: 20 MP O‘rtacha Tele kamera: 1/1.3-dyuym CMOS, samarali piksellar: 48 MP Tele kamera: 1/1.5-dyuym CMOS, samarali piksellar: 48 MP DJI Matrice 4TD: Wide-Angle kamera: 1/1.3-dyuym CMOS, samarali piksellar: 48 MP O‘rtacha Tele kamera: 1/1.3-dyuym CMOS, samarali piksellar: 48 MP Tele kamera: 1/1.5-dyuym CMOS, samarali piksellar: 48 MP
Obyektiv	Wide-Angle kamera DJI Matrice 4D FOV: 84° Format ekvivalent: 24 mm Diafragma: f/2.8-f/11 Fokus: 1 m dan ∞ DJI Matrice 4TD FOV: 82° Format ekvivalent: 24 mm Diafragma: f/1.7 Fokus: 1 m dan ∞ O‘rtacha Tele kamera FOV: 35° Format ekvivalent: 70 mm Diafragma: f/2.8 Fokus: 3 m dan ∞ Tele kamera FOV: 15° Format ekvivalent: 168 mm Diafragma: f/2.8 Fokus: 3 m dan ∞
Obyektiv isitish (tumanlanishga qarshi)	DJI Matrice 4D and DJI Matrice 4TD: Wide-angle, medium tele, and tele cameras all support lens defogging
ISO diapazoni	Oddiy rejim: ISO 100-25600 tungi sahna rejim: Matrice 4D Wide-Angle kamera: ISO 100-204800 O‘rtacha Tele kamera: ISO 100-409600 Tele kamera: ISO 100-409600 Matrice 4TD Wide-Angle kamera: ISO 100-409600 O‘rtacha Tele kamera: ISO 100-409600 Tele kamera: ISO 100-819200
Zatvor tezligi	DJI Matrice 4D Wide-Angle kamera: elektron zatvor: 2-1/8000 s mexanik zatvor: 2-1/2000 s O‘rtacha Tele kamera: 2-1/8000 s Tele kamera: 2-1/8000 s DJI Matrice 4TD 2-1/8000 s
Maks. rasm o‘lchami	DJI Matrice 4D Wide-Angle kamera: 5280×3956 O‘rtacha Tele kamera: 8064×6048 Tele kamera: 8192×6144 DJI Matrice 4TD Wide-Angle kamera: 8064×6048 O‘rtacha Tele kamera: 8064×6048 Tele kamera: 8192×6144
Minimal suratga olish intervali	DJI Matrice 4D: 0.5 s DJI Matrice 4TD: 0.7 s
Suratga olish rejimlari	DJI Matrice 4D Wide-Angle kamera: Yakka: 20 MP Vaqt bo‘yicha: 20 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s JPEG + RAW: 2/3/5/7/10/15/20/30/60 s aqlli Capture: 20 MP Panorama: 20 MP (raw tasvir); 100 MP (stitched tasvir) O‘rtacha Tele kamera: Yakka: 12 MP/48 MP Vaqt bo‘yicha: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s aqlli Capture: 12 MP Tele kamera: Yakka: 12 MP/48 MP Vaqt bo‘yicha: 12 MP/48 MP JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s aqlli Capture: 12 MP DJI Matrice 4TD Wide-Angle kamera: Yakka: 12 MP/48 MP Vaqt bo‘yicha: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s aqlli Capture: 12 MP Panorama: 12 MP (raw tasvir); 100 MP (stitched tasvir) O‘rtacha Tele kamera: Yakka: 12 MP/48 MP Vaqt bo‘yicha: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s aqlli Capture: 12 MP Tele kamera: Yakka: 12 MP/48 MP Vaqt bo‘yicha: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s aqlli Capture:12MP
Video kodek va ruxsat	DJI Matrice 4D va DJI Matrice 4TD Video Codec: H.264, H.265 Encoding Strategy: CBR, VBR Resolution: 4K: 3840×2160@30k/s FHD: 1920×1080@30k/s
Video bitreyti	DJI Matrice 4D va DJI Matrice 4TD H264: 60 Mbit/s H265: 40 Mbit/s
Fayl tizimi	exFAT
Rasm formati	DJI Matrice 4D: Wide-Angle kamera: JPEG/DNG (RAW) O‘rtacha Tele kamera: JPEG Tele kamera: JPEG DJI Matrice 4TD: JPEG
Video formati	DJI Matrice 4D va DJI Matrice 4TD:MP4 (MPEG-4 AVC/H.264)
Raqamli zum	Tele kamera: 16x (112x hybrid zoom)

Dron — NIR yordamchi yoritgich

Infraqizil yoritish

DJI Matrice 4TD: FOV: 5.7°±0.3°

Dron — lazer moduli

Lazerli masofa o‘lchash

Oddiy Incidence diapazon: 1800 m (1 Gs) @20% qaytarish qobiliyati target* Oblique Incidence diapazon (1:5 Oblique Distance): 600 m (1 Gs) Blind Zone: 1 m Distance o‘lchash Accuracy: 1 m dan 3 m: System Error <0.3 m, Random Error <0.1 m @1σ Other Distances: ±(0.2+0.0015D) (Distance ichida metr)

Dron — infraqizil termal kamera (Matrice 4TD)

Termal tasvirlagich	Sovutilmaydigan VOx mikrobolometr
Ruxsat	640×512
Piksel qadami	12 μm
Kadr chastotasi	30 Gs
Obyektiv	DFOV: 45° Format ekvivalent: 53 mm Diafragma: f/1.0 Fokus: 5 m dan ∞
Sezgirlik	≤ 50 mk@F1.0
Harorat o‘lchash usuli	Spot o‘lchash, Area o‘lchash
Harorat o‘lchash diapazoni	-40° dan 150° C gacha (-40° dan 320° F gacha, Yuqori kuchaytirish rejim) 0° dan 500° C gacha (32° dan 932° F gacha, Past kuchaytirish rejim)
Rang palitrasi	White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Rasm formati	JPEG (8-bit) R-JPEG (16-bit)
Video ruxsati	1280×1024@30k/s (UHR infraqizil Image function yoqilgan, tungi sahna rejim not yoqilgan) Other sharoitlar: 640×512@30k/s
Video bitreyti	6.5Mbit/s (H.264 640×512@30k/s) 5Mbit/s (H.265 640×512@30k/s) 12Mbit/s (H.264 1280×1024@30k/s) 8Mbit/s (H.265 1280×1024@30k/s)
Video formati	MP4
Suratga olish rejimlari	Yakka Oddiy rejim: 640×512 UHR infraqizil Image rejim: 1280×1024 Vaqt bo‘yicha Oddiy rejim: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s UHR infraqizil Image rejim: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s
Raqamli zum	28x
Infraqizil to‘lqin uzunligi	8-14 μm
Infraqizil harorat o‘lchash aniqligi	Yuqori kuchaytirish: ±2℃ yoki ±2%, whichever greater Past kuchaytirish: ±5℃ yoki ±3%, whichever greater

Dron — podves

Barqarorlashtirish	3 o‘qli mexanik podves (egilish, aylanish, burilish)
Mexanik diapazon	DJI Matrice 4D: Egilish: -140° dan +50° gacha Aylanish: -52° dan +52° gacha Burilish: -65° dan +65° gacha DJI Matrice 4TD: Egilish: -140° dan +113° gacha Aylanish: -52° dan +52° gacha Burilish: -65° dan +65° gacha
Boshqariladigan diapazon	DJI Matrice 4D Egilish: -90° dan +35° gacha Burilish: Not controllable DJI Matrice 4TD Egilish: -90° dan +90° gacha* Burilish: Not controllable
Maks. boshqaruv tezligi (egilish)	100°/s
Burchak tebranishi	±0.005°

Dron — sensorlar

Sensor turi	Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.
Oldinga	o‘lchash diapazon: 0.5 m dan 20 m aniqlash diapazon: 0.5 m dan 200 m Samarali sezish tezligi: parvoz tezligi ≤ 15 m/s FOV: Gorizontal 95°, Vertikal 90°
Orqaga	o‘lchash diapazon: 0.5 m dan 20 m Samarali sezish tezligi: parvoz tezligi ≤ 12 m/s FOV: Gorizontal 95°, Vertikal 90°
Yon tomonga	o‘lchash diapazon: 0.5 m dan 16 m Samarali sezish tezligi: parvoz tezligi ≤10 m/s FOV: Gorizontal 90°, Vertikal 90°
Yuqoriga	o‘lchash diapazon: 0.5 m dan 20 m Samarali sezish tezligi: parvoz tezligi ≤6 m/s FOV:old va orqa 95°, Chap va O‘ng 90°
Pastga	o‘lchash diapazon: 0.5 m dan 16 m Samarali sezish tezligi: parvoz tezligi ≤6 m/s FOV: old va orqa 90°, Chap va O‘ng 95°
Ishlash sharoiti	Forward, Backward, Upward and Downward: Surfaces with discernible patterns and adequate lighting (lux > 0.1) Left and Right: Diffuse reflective surface with diffuse reflectivity > 20% (e.g. walls, trees, people) and adequate lighting (lux > 6)

Dron — video uzatish

Video uzatish tizimi	DJI O4+ Enterprise
Jonli tasvir sifati	720p/30k/s, 1080p/30k/s (bilan DJI RC Plus 2 Enterprise) 540p/30k/s, 720p/30k/s, 1080p/30k/s (bilan DJI Dock 3 va DJI FlightHub 2)
Ishchi chastota	2.400-2.4835 GGs 5.150-5.250 GGs (CE: 5.170-5.250 GGs) 5.725-5.850 GGs
Maks. uzatish masofasi (to‘siqsiz, shovqinsiz)	FCC: 25 km CE: 12 km SRRC: 12 km MIC: 12 km
Maks. uzatish masofasi (to‘siqsiz, shovqin bilan)	kuchli shovqin (dense buildings, residential hududlar, va boshqalar.): 1.5-5 km O‘rtacha shovqin (shahar atrofi counties, city parks, va boshqalar.): 5-15 km Weak shovqin (open spaces, remote hududlar, va boshqalar.): 15-25 km
Maks. yuklab olish tezligi	20 MB/s (bilan DJI Dock 3) 20 MB/s (bilan DJI RC Plus 2 Enterprise)
Eng past kechikish	The video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions). The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer's configuration.
Antenna	8 antenna, 2T4R
Uzatgich quvvati (EIRP)	2.4 GGs: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.1 GGs (CE: 5.170-5.250 GGs): < 23 dBm (FCC/CE) 5.8 GGs: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
Boshqalar	Qo‘llab-quvvatlaydi DJI Cellular Dongle 2

Dron — xotira

Mos xotira kartalari	Aircraft: U3/Class10/V30 or above is supported. A list of recommended microSD cards can be found below.
Tavsiya etilgan microSD kartalar	Lexar 1066x 64GB U3 A2 V30 microSDXC Lexar 1066x 128GB U3 A2 V30 microSDXC Lexar 1066x 256GB U3 A2 V30 microSDXC Lexar 1066x 512GB U3 A2 V30 microSDXC Kingston Canvas Go! Plus 64GB U3 A2 V30 microSDXC Kingston Canvas Go! Plus 128GB U3 A2 V30 microSDXC Kingston Canvas Go! Plus 256GB U3 A2 V30 microSDXC Kingston Canvas Go! Plus 512GB U3 A2 V30 microSDXC

Dron — batareya

Sig‘imi	6768 mA·soat
Kuchlanish	22.14 V
Maks. quvvatlash kuchlanishi	25.5 V
Element turi	Li-ion 6S
Kimyoviy tizim	LiNiMnCoO2
Energiya	149.9 Vt·soat
Og‘irligi	640 g
Zaryad sikllari soni	400
Quvvatlash harorati	5° dan 45° C gacha (41° dan 113° F gacha)
Razryad tezligi	4C
Maks. quvvatlash quvvati	1.8C
Past haroratda quvvatlash	Past haroratda o‘z-o‘zini isitib quvvatlashni qo‘llab-quvvatlaydi

Dron — quvvat adapteri

Kirish	100-240 V (AC), 50/60 Gs, 3 A
Chiqish quvvati	240 Vt
Chiqish	Total: 240Vt maks. chiqish quvvat; USB-C port: 65Vt maks. chiqish quvvat

Quvvatlash hubi

Kirish	SDC: 16.8 V dan 25.5 V, 12.1 A
Nominal quvvat	240 Vt
Quvvatlash turi	3 batareyalar quvvatlash ichida sequence Support Standard Mode (100% SOC) and Ready-to-Fly Mode (90% SOC)
Mos batareya	DJI Matrice 4D Series Battery
Quvvatlash harorati	5° dan 40° C gacha (41° dan 104° F gacha)

DJI RC Plus 2 Enterprise

Maks. uzatish masofasi (to‘siqsiz, shovqinsiz)	FCC: 25 km CE: 12 km SRRC: 12 km MIC: 12 km
Video uzatish ishchi chastotasi	2.4000-2.4835 GGs 5.725-5.850 GGs (Qo‘llab-quvvatlanmaydi ichida Japan) 5.2 GGs (receive faqat)
Antenna	2T4R, built-ichida multi-beam yuqori-gain antenna
Video uzatish quvvati (EIRP)	2.4 GGs: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) 5.2 GGs: ＜23 dBm (CE) 5.8 GGs: ＜33 dBm (FCC), ＜14 dBm (CE), ＜30 dBm (SRRC)
4G uzatish	DJI Cellular Dongle 2
Wi-Fi protokoli	Wi-Fi Direct, Wireless Display, IEEE 802.11a/b/g/n/ac/ax Supports 2×2 MIMO Wi-Fi, dual-band simultaneous (DBS) support for dual MAC, with data rates up to 1774.5 Mbps (2×2 + 2×2 11ax dual-band simultaneous)
Wi-Fi ishchi chastotasi	2.4000-2.4835 GGs 5.150-5.250 GGs 5.725-5.850 GGs
Wi-Fi uzatgich quvvati (EIRP)	2.4 GGs: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) 5.2 GGs: ＜26 dBm (FCC), < 23 dBm (CE/SRRC/MIC) 5.8 GGs: ＜26 dBm (FCC/SRRC), ＜14 dBm (CE)
Bluetooth protokoli	Bluetooth 5.2
Bluetooth ishchi chastotasi	2.400-2.4835 GGs
Bluetooth uzatgich quvvati (EIRP)	＜10 dBm
Ekran ruxsati	1920 × 1200
Ekran o‘lchami	7.02 dyuym
Ekran kadr chastotasi	60 k/s
Yorqinlik	1400 nit
Sensorli ekran boshqaruvi	10 Points Multi-touch
O‘rnatilgan batareya	2S2P Yuqori Energy Density 18650 Lithium-ion Battery (6500 mA·soat @ 7.2 V) 46.8Vt·soat
Tashqi batareya	Ixtiyoriy, WB37 (4920 mA·soat @ 7.6 V) 37Vt·soat
Quvvatlash turi	Qo‘llab-quvvatlaydi PD fast quvvatlash, bilan a maximum 20V/3.25A USB Type-C quvvatlagich
Xotira hajmi	RAM 8G + ROM 128G UFS + expandable storage via microSD card
Quvvatlash vaqti	2 soat uchun internal batareya; 2 soat uchun internal plyus external batareyalar.
Ichki batareya ishlash vaqti	3.8 soat
Tashqi batareya ishlash vaqti	3.2 soat
Chiqish porti	HDMI 1.4
Indikatorlar	Status LED, batareya level LED, connection status LED, tricolor light, brightness adjustable according dan ambient light
Karnay	Qo‘llab-quvvatlaydi buzzer
Audio	Array MIC
Ishchi harorat	-20° dan 50° C gacha (-4° dan 122° F gacha)
Saqlash harorati	Within bitta oy: -30° dan 45° C gacha (-22°F dan 113°F gacha) One to three months: -30° to 35° C (-22°F to 95°F) Three months to one year: -30° to 30° C (-22°F to 86°F)
Quvvatlash harorati	5° dan 40° C gacha (41° dan 104° F gacha)
Mos dron modellari	Qo‘llab-quvvatlaydi Matrice 4TD/4D, Matrice 4T/4E
Global navigatsiya sun’iy yo‘ldosh tizimi	GPS, Galileo, BeiDou.
O‘lchamlari	268×163×94.5 mm (U×K×B)
Og‘irligi	1.15 kg (siz external batareya)
Model	TKPL 2
Tizim versiyasi	Android 11
Tashqi interfeyslar	HDMI 1.4, SD 3.0, Type-C with OTG support, max 65W PD charging, USB-A with USB 2.0 support
Aksessuar	Ixtiyoriy strap/waist support

AL1 projektor

Og‘irligi	99 g (shu jumladan kronshteyn） 91 g (hisobga olmaganda kronshteyn)
O‘lchamlari	95×164×30 mm (U×K×B, shu jumladan kronshteyn) 79×164×28 mm (U×K×B, hisobga olmaganda kronshteyn)
Maks. quvvat	32 Vt
Yoritilganlik	4.3±0.2 lyuks @ 100 metr, 17±0.2 lyuks @ 50 metr
Samarali yoritish burchagi	23° (10% relative illumination)
Samarali yoritish maydoni	1,300 square metr @ 100 metr (10% relative illumination, Oddiy rejim) 2,200 square metr @ 100 metr (10% relative illumination, Wide FOV rejim)
Ish rejimi	Supports always-on and strobe modes.
Podves mexanik diapazoni	Egilish: -140° dan +50° gacha
Podves boshqariladigan diapazoni	Egilish: -90° dan +35° gacha
Podves maks. boshqaruv tezligi (egilish)	120° /s
Podves tekislash aniqligi	±0.1°
Ishchi harorat	-20° dan 50° C gacha (-4° dan 122° F gacha)
Himoya darajasi (IP)	IP55
O‘rnatish	Quick-release hand-tightened screw
Mos dron modellari	Qo‘llab-quvvatlaydi Matrice 4TD/4D, Matrice 4T/4E

AS1 karnay

Og‘irligi	92.5 g (shu jumladan kronshteyn) 90 g (hisobga olmaganda kronshteyn)
O‘lchamlari	73×70×52 mm (U×K×B, shu jumladan kronshteyn) 73×70×47 mm (U×K×B, hisobga olmaganda kronshteyn)
Maks. quvvat	15 Vt
Maks. tovush balandligi	At 1 meter, it mumkin reach 114 decibels (114dB@1m).
Samarali eshittirish masofasi	300 m
Eshittirish rejimi	Real-time broadcasting, record & broadcast, file input (supports simultaneous transfer and playback), text-to-speech*
Ishchi harorat	-20° dan 50° C gacha (-4° dan 122° F gacha)
Himoya darajasi (IP)	IP55
O‘rnatish	Quick-release hand-tightened screw
Mos dron modellari	Qo‘llab-quvvatlaydi Matrice 4TD/4D, Matrice 4T/4E

Matrice 4 to‘siq sezish moduli

Og‘irligi	235 g
O‘lchamlari	103.3×64×85.8 mm (U×K×B)
Himoya darajasi (IP)	IP55
Ishchi harorat	-20° dan 50° C gacha (-4° dan 122° F gacha)
Sensor turi	Combination ning rotating LiDAR va millimeter-wave radar
Ko‘rish burchagi (FOV)	Rotating LiDAR: Vertikal 58°, Gorizontal 360° Millimeter-wave Radar: Vertikal 90°, Gorizontal 90°
O‘lchash diapazoni	100m maks. detection distance
Samarali sezish tezligi	Parvoz tezlik ≤15 m/s (obstacle type: 12mm steel-core aluminum stranded wire)

Avtomobilga o‘rnatiladigan podves

Og‘irligi	O‘ng Bracket va podves Support: 440 g Chap Bracket: 155 g
O‘lchamlari	O‘ng kronshteyn va podves support: 112.8×152.2×157.8 mm (U×K×B) Chap Bracket: 126.3×172.9×70.3 mm (U×K×B)
Ta’minot kuchlanishi	14 V
Himoya darajasi (IP)	IP55
Ishchi harorat	-30° dan 50° C gacha (-22° dan 122° F gacha)

Komplekt tarkibi tanlangan konfiguratsiyaga bog‘liq. Buyurtmadan oldin tarkib va miqdorni menejer bilan tasdiqlang. Tasdiqlangan rasmi bo‘lmagan qismlar nomi bilan ko‘rsatilgan.

DJI Dock 3 stansiyasi

Mos dron va parvoz batareyalari: tanlangan loyiha konfiguratsiyasi bo‘yicha alohida tasdiqlanadi

O‘rnatish materiallari, elektr ta’minoti va tarmoq ulanishi: obyekt tekshiruvidan so‘ng aniqlanadi

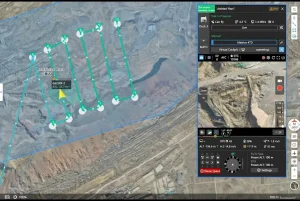

FlightHub 2 / bulut xizmatlari: litsenziya, obuna va joriy etish ishlari alohida kelishiladi

Mos aksessuarlar. Alohida buyurtma qilinadi; narx va mavjudlikni aniqlashtiring.

Ushbu model uchun aksessuarlar ro‘yxati aniqlashtirilmoqda. Kerakli aksessuar nomini so‘rovda yozing.

Sharhlar

Baho berilmagan.

“DJI Dock 3&rdquo mahsulotiga birinchilardan bo'lib fikr bildiring;

DJI Dock 3 — Savol-javob

Ushbu modelning asosiy xususiyatlari qanday?

Mahsulot nomi: DJI Dock 3
Umumiy og‘irlik: 55 kg (siz dron)
O‘lchamlari: Dock Cover Opened: 1760×745×485 mm (U×K×B) Dock Cover Closed: 640×745×770 mm (U×K×B)
Kirish kuchlanishi: 100-240 V (AC), 50/60 Gs

To‘liq jadval va cheklovlarni «Xususiyatlari» bo‘limida tekshiring.

Komplekt va qo‘shimcha aksessuarlar bir xilmi?

Yo‘q. Komplektatsiya bo‘limida tanlangan to‘plam tarkibi ko‘rsatiladi. Aksessuarlar esa alohida tanlanadigan qo‘shimcha jihozlar. Batareya, pult va quvvatlash qurilmasining aniq modeli va miqdorini buyurtmadan oldin tasdiqlang.

Moslikni qanday tekshirish kerak?

Mahsulotning to‘liq nomi, versiyasi va mavjud jihozlaringiz modelini yuboring. Ulagichning bir xil ko‘rinishi yetarli emas: quvvat, proshivka va ishlab chiqaruvchi moslik ro‘yxati ham tekshirilishi kerak.

Buyurtmani qanday yuboraman?

«Buyurtma berish» tugmasini bosing, ism, telefon, miqdor va kerakli komplektatsiyani kiriting. Ariza yuborish to‘lov emas; narx, mavjudlik va yakuniy tarkib alohida tasdiqlanadi.

DJI Dock 3

DJI Dock 3
